AC100-277V Input Voltage LED Street Light Fixtures with Energy-Saving 110-150 Lm/w Optical Effect and 000hrs Lifespan

Porcelana NingBo Die-Casting Man Technology Co.,ltd. certificaciones
Porcelana NingBo Die-Casting Man Technology Co.,ltd. certificaciones
¡El proveedor del oro, me ahorra mucho tiempo para hacer la compra! ¡Y siempre dando la sugerencia profesional, ayúdeme mucho en negocio! ¡Gracias!

—— Ian Nicholas

Productos de buena calidad, precio bajo y servicios de alta calidad. Confianza digna y socio comercial de recomendación.

—— Michal Jussize

Hola Jenny, he recibido el cargo. Quiero decir que muy nos satisfacen con su producto y servicio excelente. Quiero también hacer una nueva orden.

—— Ryan Retherford

He estado cooperando con el hombre de la fundición a presión durante 3 años. me suministraron los pedazos de los millares de vivienda de la luz de calle, estoy alegre trabajar con ellos debido a la calidad confiable y el precio competitivo. Una buena experiencia a mí.

—— Diana

Estoy en línea para chatear ahora

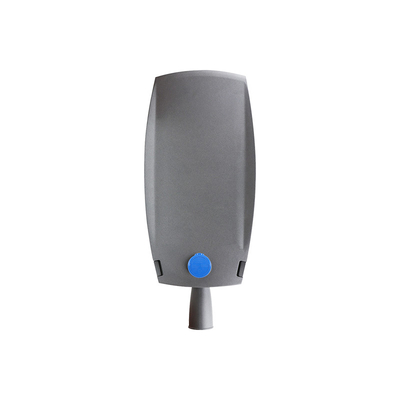

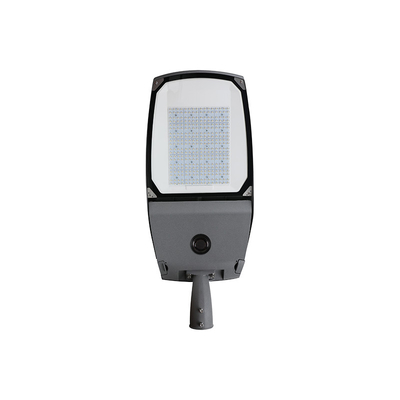

AC100-277V Input Voltage LED Street Light Fixtures with Energy-Saving 110-150 Lm/w Optical Effect and 000hrs Lifespan

AC100-277V Input Voltage LED Street Light Fixtures with Energy-Saving 110-150 Lm/w Optical Effect and 000hrs Lifespan

Ampliación de imagen :  AC100-277V Input Voltage LED Street Light Fixtures with Energy-Saving 110-150 Lm/w Optical Effect and 000hrs Lifespan

Datos del producto:
Place of Origin: Ningbo, China
Nombre de la marca: Die-casting Man
Certificación: CE. EMC, LVD, ENEC, RoHs
Número de modelo: Se trata de un producto de la familia de los derivados.
Pago y Envío Términos:
Minimum Order Quantity: 1PC
Precio: US$21.6 - US$44.6
Packaging Details: 1PC/CTN
Delivery Time: 7-35DAYS
Payment Terms: TT
Supply Ability: 50000PCS/M
Descripción detallada del producto
Factor de potencia: > 0.95 Grado de protección: IP66
Tamaño: 555*210*143mm Válvula de entrada: AC100-277V
Conductor: Inventronics, MOSO, SOSEN, Philips, Osram y otras empresas. Tiempo de trabajo: > 70000 horas
Temperatura del color: 3000K 4000K 5700K 6500K Peso: 2,9 kg
Resaltar:

AC100-277V LED street light

,

energy-saving LED street fixture

,

110-150 Lm/w street light

AC100-277V Input Voltage LED Street Light Fixtures
Product Specifications
Attribute Value
Power Factor >0.95
Protection Grade IP66
Size 555*210*143mm
Input Voltage AC100-277V
Driver Inventronics, MOSO, SOSEN, Philips, Osram
Working Lifetime >70000hrs
Color Temperature 3000k 4000k 5700k 6500k
Weight 2.9 KG
Product Description

The LED Street Light Fixtures offer a versatile range of power options from 30W to 300W, providing flexibility for various lighting needs. Weighing just 2.9 KG with compact dimensions of 555*210*143mm, these fixtures are lightweight yet durable for easy installation and maintenance.

With a high power factor exceeding 0.95, these fixtures ensure efficient power utilization, resulting in cost savings and reduced energy consumption. The advanced technology maximizes electricity conversion into usable light, making them an environmentally friendly solution.

Equipped with a projector lamp module, these fixtures deliver focused, uniform lighting for enhanced visibility and safety. The adjustable street tilt adapter allows customizable lighting angles for optimal coverage in any outdoor setting.

Key Features
  • Simple and fashionable crescent moon appearance design
  • Safe and reliable structural design
  • Tool-free maintaining structure
  • Adjustable bracket for horizontal and vertical installation
Technical Parameters
Model SL-25-40M SL-25-100M SL-25-150M SL-25-240M
Input Wattage (W) 30/40/50/60 80/100/120 150/180/200 240/300
Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm φ60/70mm
Installation Height (m) 3-8 6-10 8-12 10-14
Input Voltage 90~305Vac 90~305Vac 90~305Vac 90~305Vac
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor ≥0.9 ≥0.9 ≥0.9 ≥0.9
Light source LED LED LED LED
Luminaire efficacy (lm/W) 130-170 130-170 130-170 130-170
Applications

The Crescent SL-25 series LED street lights offer comprehensive lighting solutions for road and street applications, meeting international standards including ENEC, CB, CE, EMC, LM79, and RoHS compliance.

Featuring wattages from 30 to 320W with ultra-high luminous efficiency and various lighting distribution options. The intelligent control system includes timing dimming, 0-10v dimming, Dali, Zigbee, and NB-IoT for versatile lighting scenarios.

Customization Options

Customization services available with the following specifications:

  • Brand Name: Die-casting Man
  • Model Number: YASL-25-40
  • Certification: CE, EMC, LVD, ENEC, RoHs
  • Minimum Order Quantity: 1PC
  • Price Range: US$21.6 - US$44.6
  • Delivery Time: 7-35 days
  • Body Material: ADC12 International Standard Aluminium
Packaging & Shipping

Each LED Street Light Fixture is carefully packed in sturdy cardboard boxes with protective material to prevent damage during shipping. Packages are securely sealed and labeled for easy identification, with tracking numbers provided for shipment monitoring.

AC100-277V Input Voltage LED Street Light Fixtures with Energy-Saving 110-150 Lm/w Optical Effect and 000hrs Lifespan 0
